Jodel DR.1050 and DR.1050-M1 Series Aircraft: Panel Layout & Equipment

Layout No. 1 - from F-BJLP s/n 25, built 1960

The following scan from a French version of the aircraft manual was kindly supplied by Jörg Spittler, owner of Jodel DR.1051-M1 F-BJLP s/n 25. The PDF versions are somewhat lower in quality (they are black & white, the Jpegs are greyscale), but the file sizes are also much smaller and they should be easier to print.

[b/w PDF, 42 kB]
1144x1750 Jpeg, 171 kB
Scan of the instrument panel layout page from the original French version of the aircraft manual for F-BJLP (s/n 25). Note the curved right-hand part of the panel.
DR.1050 and DR.1050-M1 Instrument Panel (Continental O-200)
No. Instrument Manufacturer
1 Inclinometer
2 Magnetic Compass
3 Altimeter
4 Airspeed Indicator
5 Tachometer
6 Vertical Speed Indicator
7 Oil Warning Light (Temperature/Pressure?)
8 Fuse: Stall Warning
9 Stall Warning Light
10 Fuse: Instrument Panel
11 Oil Test Button ??
12 Fuse: Radio
13 Front Tank Warning Light
14 Fuel Pressure Warning Light
15 Rear Tank Warning Light
16 Alternator Warning Light
17 Fuse: Alternator Circuit
18 Switch Magneto 1
19 Switch Magneto 2
20 Parking Brake
21 Throttle (Pilot)
22 Carburetor Heat Lever
23 Fuel Tank Selector
24 Mixture Lever
25 Starter Lever
26 Master Switch
27 Throttle (Co-Pilot)
28 Oil Temperature Gauge
29 Front Fuel Tank Gauge
30 Cabin Heat Lever
31 Fuel Pump Switch
32 Rear Tank Fuel Gauge
33 Generator Switch
34 Amperemeter

Layout No. 2 - from D-EAKM s/n 139, built 1961

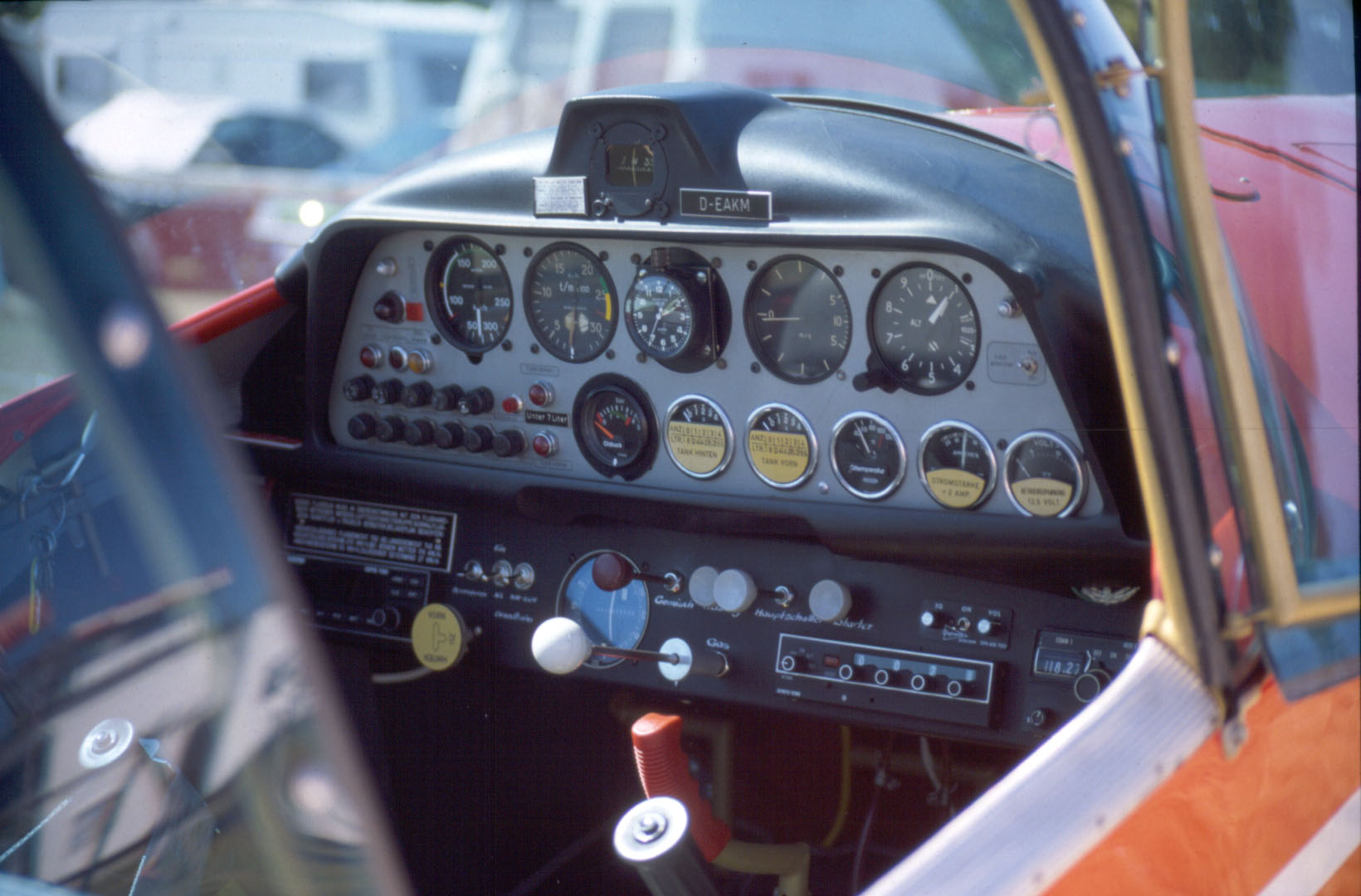

[1640x1080 Jpeg, 202 kB]
1024x647 Jpeg, 122 kB
This framed type of instrument panel is also installed in D-EJIC, s/n 199, built 1961 by SAN.

Layout No. 3 - from D-EHIE s/n 291, built early 1962

[1600x1200 Jpeg, 110 kB]
800x600 Jpeg, 65 kB
This type of instrument panel is installed in my aircraft, D-EHIE, s/n 291, built 1962 by SAN. I think it is rather original in layout, although the location of some instruments has definitely been changed. There was no GPS and no digital EGT in 1962 ... Unfortunately I can not give more information at this time, as Heidi's original manual has not resurfaced yet. And ok, the 'joystick' is not very nice and has already been replaced with a more solid and original installation, ok?

Lutz Gebhardt
